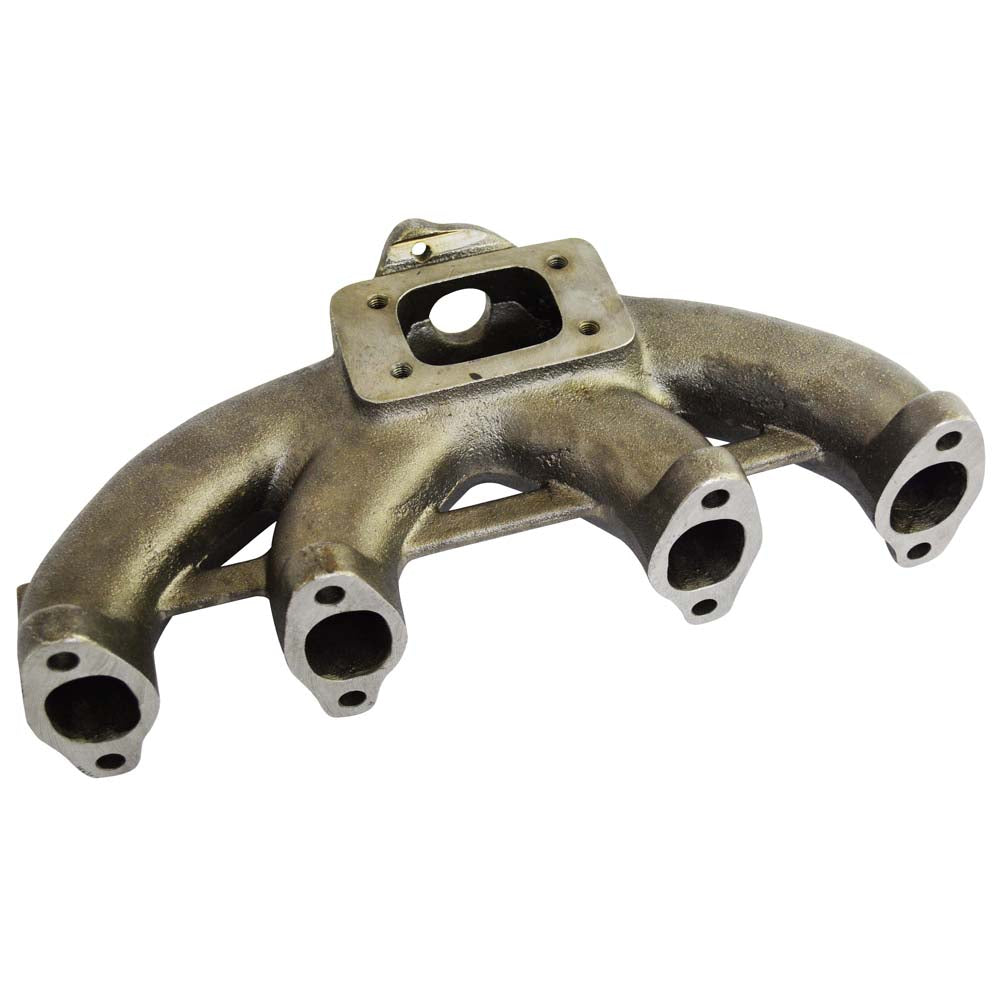

VW Golf / Passat ABA 8v / 1.9L TDI turbo manifold - T3 Flange

• The TMW06 manifold is a bottom-mount, GGG40 cast manifold, with a T25 or T3 turbocharger Flange; manifold accepts SPA "L" fitting wastegates.
• The application is VW Golf, Jetta, Dasher, Passat,with 1.6L, 1.8L, 2.0L 8v engines (also can be used in TDI Diesel applications).
• Wastegate mount TMSPT03 / TMSPT04 are required on transverse engines assembly (Golf)
• Special engine mount TMSPT06 is required on Golf III & older assembly.
• SPA Turbo offer a wide range of products for that application, as camshafts, pulleys, intake manifolds, spark plugs wire sets, connecting rods, pistons, gaskets, please contact us for more information.
• Turbo flange threads: M10x1.5
  Wastegate flange (if applicable) threads: M8x1.25

SPA Turbo has one of the widest selections of turbo manifolds in the world, including hard to find applications. From log style to top mount equal runners manifolds, we stock them. We have been providing quality performance components since 1990.
