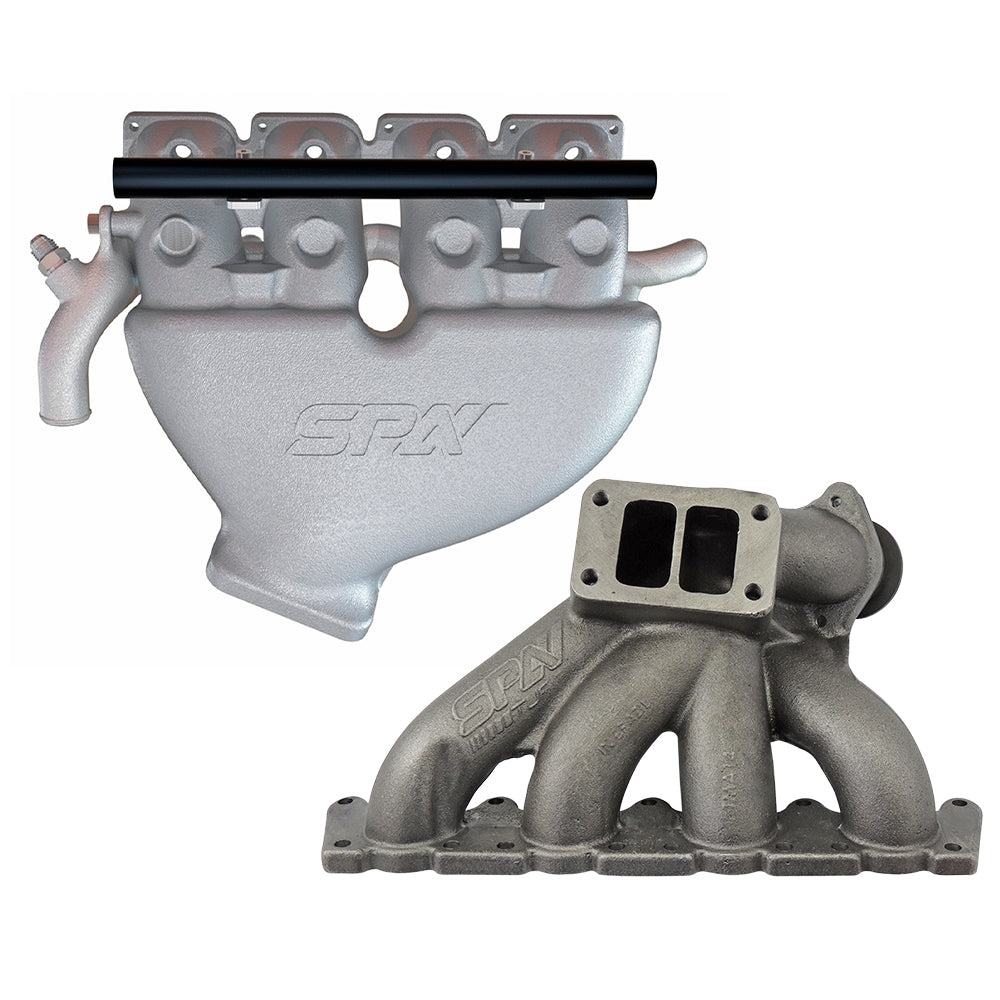

VW B5 T3 top mount turbo twin scroll manifold wastegate V-Band + Cast Aluminum Intake Manifold for longitudinal with 4 injectors Fuel Rail Kit (without throttle bolt holes)

Low stock! Only 2 left
$829.90 USD
$829.90 USD
  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed

Want FAST delivery?! Order in less than

I18n Error: Missing interpolation value "end_date" for "Ends on {{ end_date }}"

Question about this product?

We're happy to help.

VW B5 T3 top mount turbo twin scroll manifold wastegate V-Band

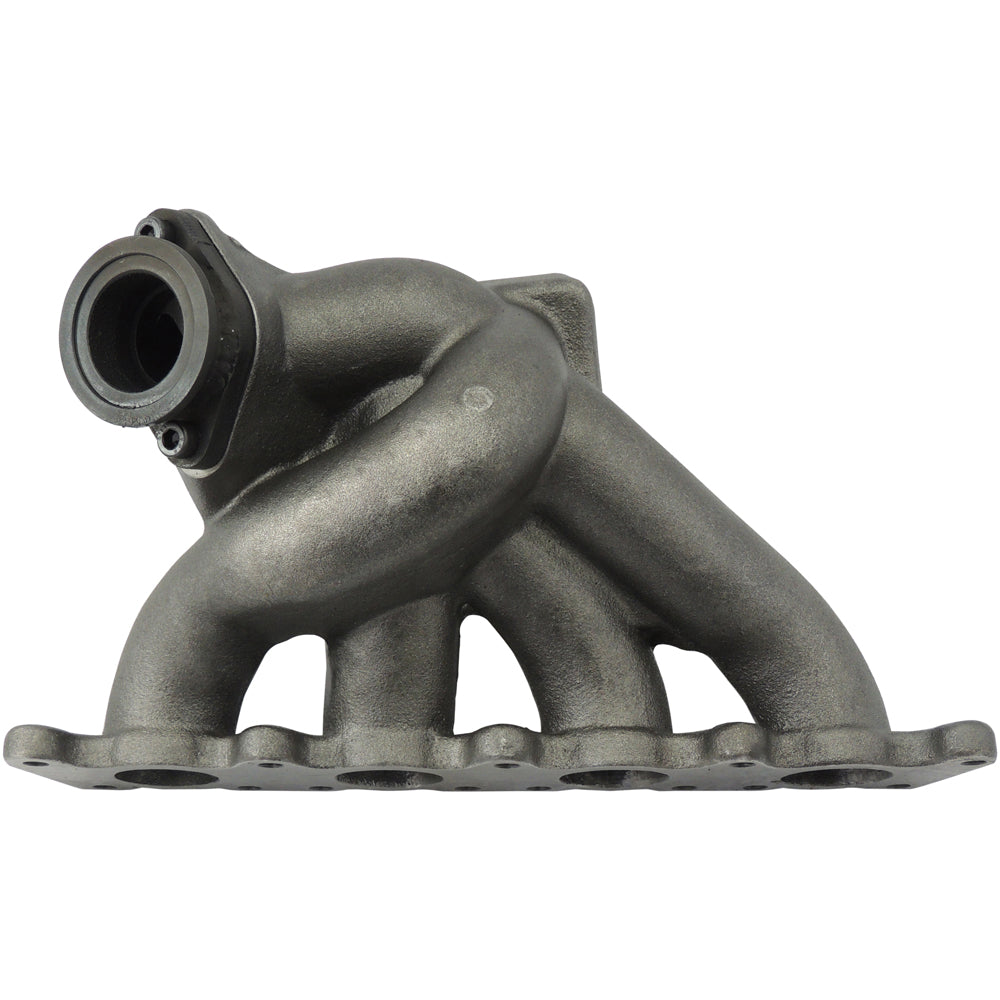

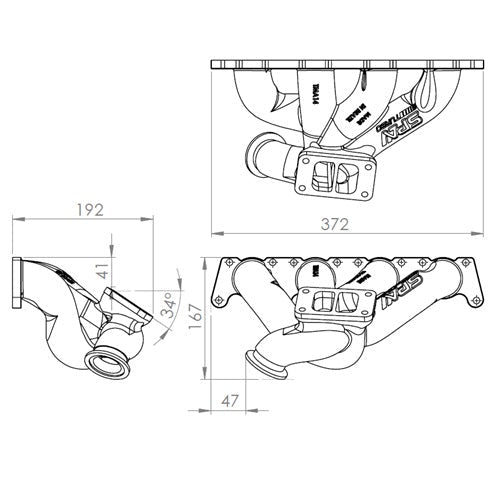

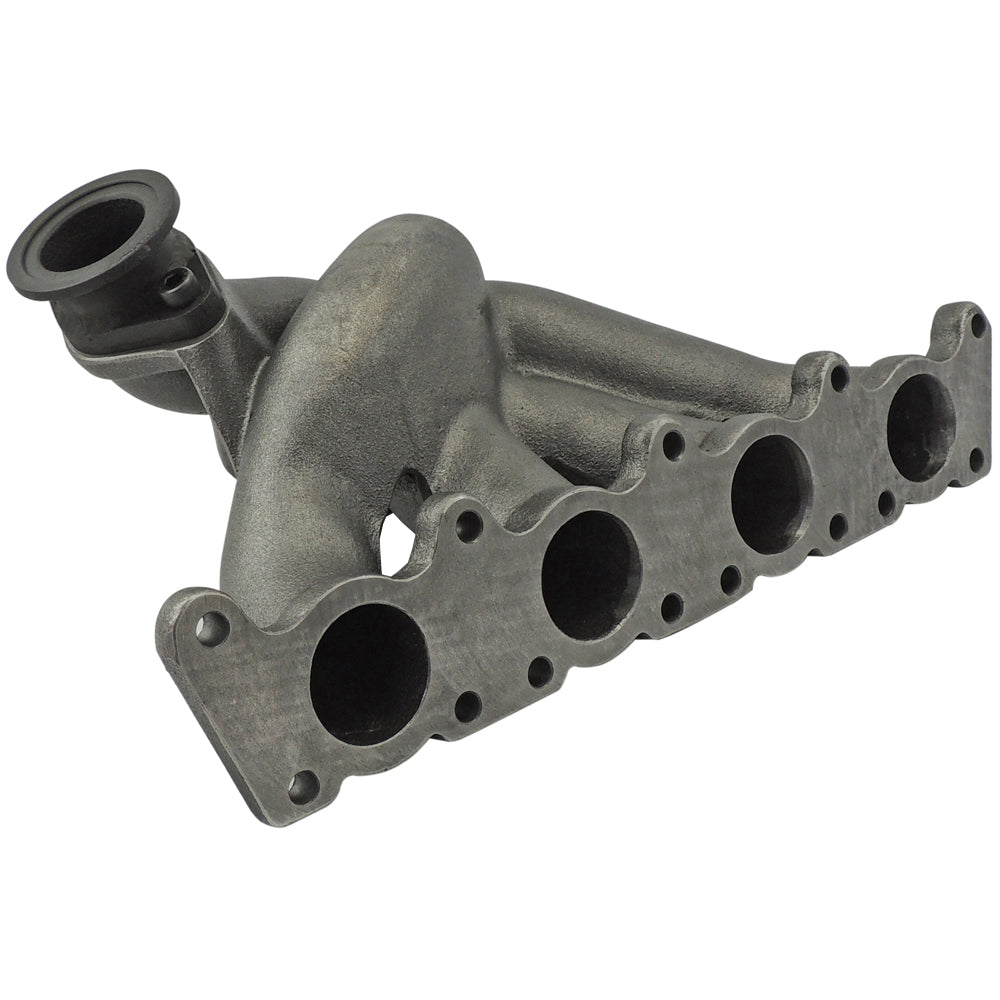

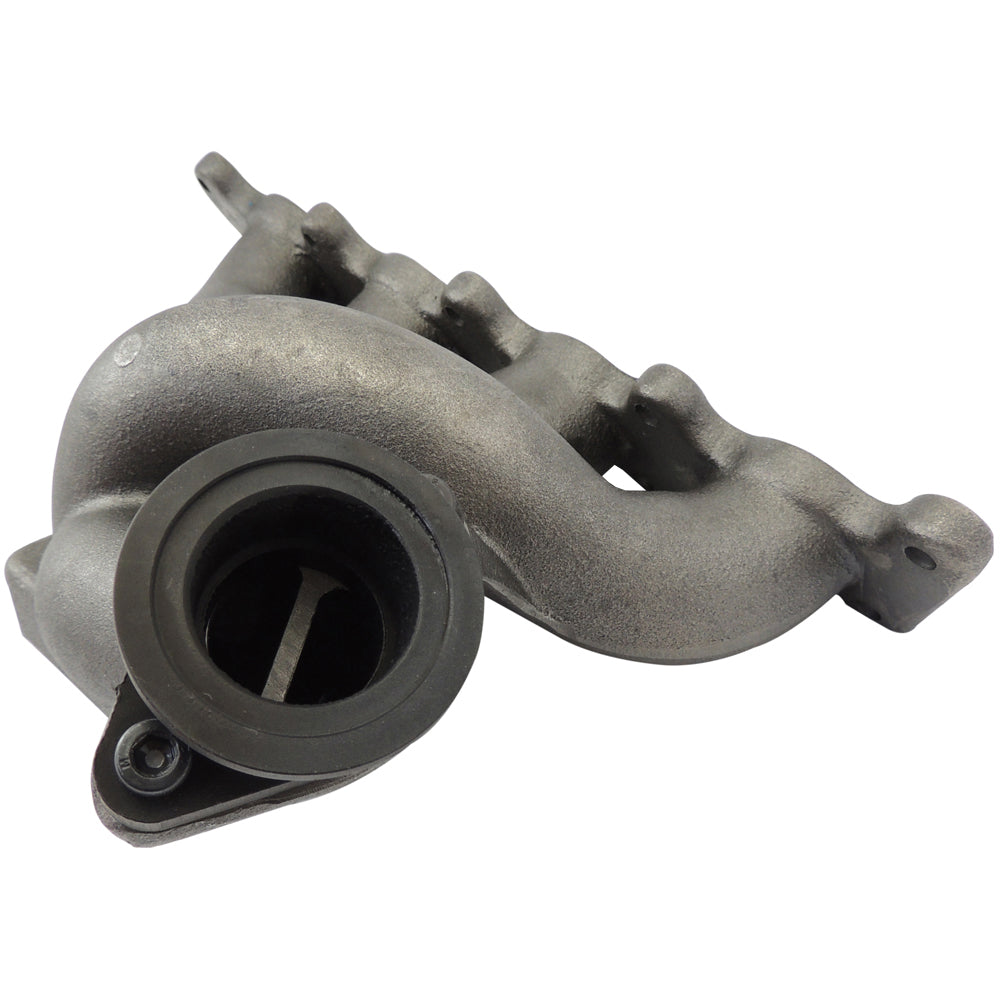

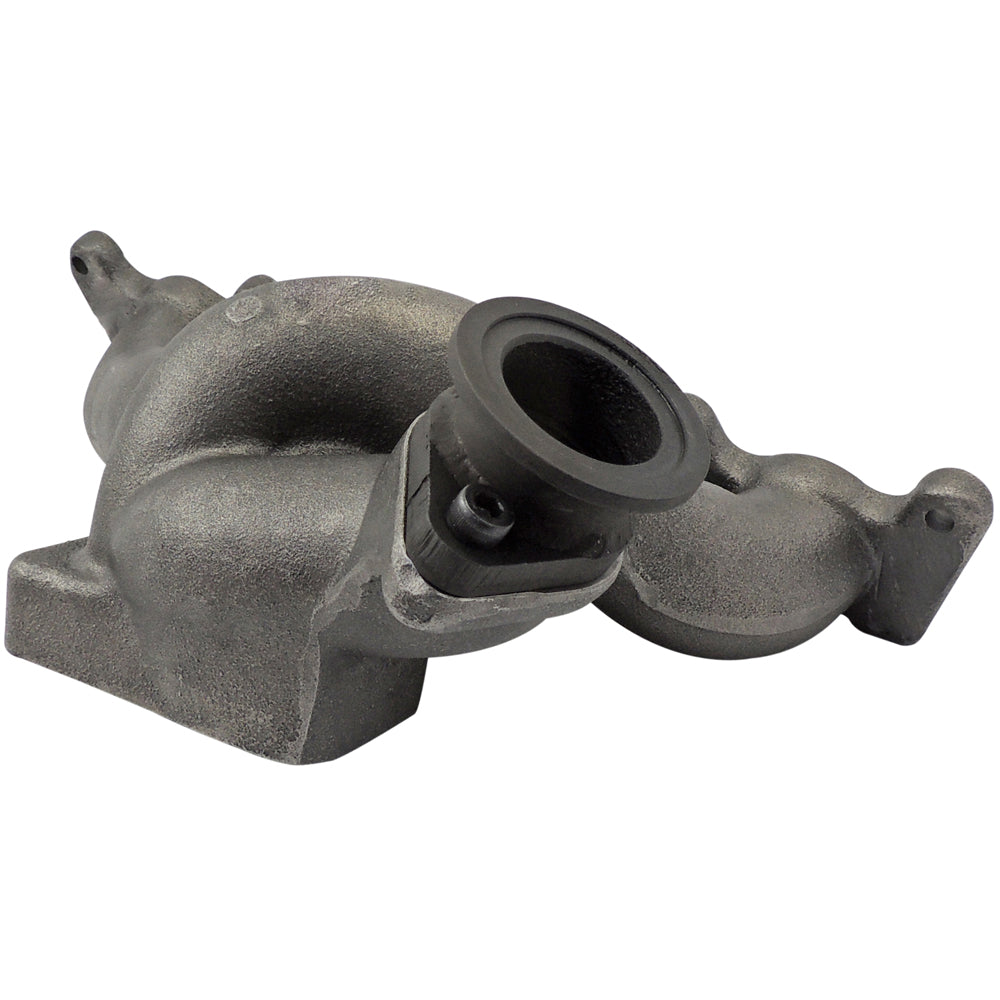

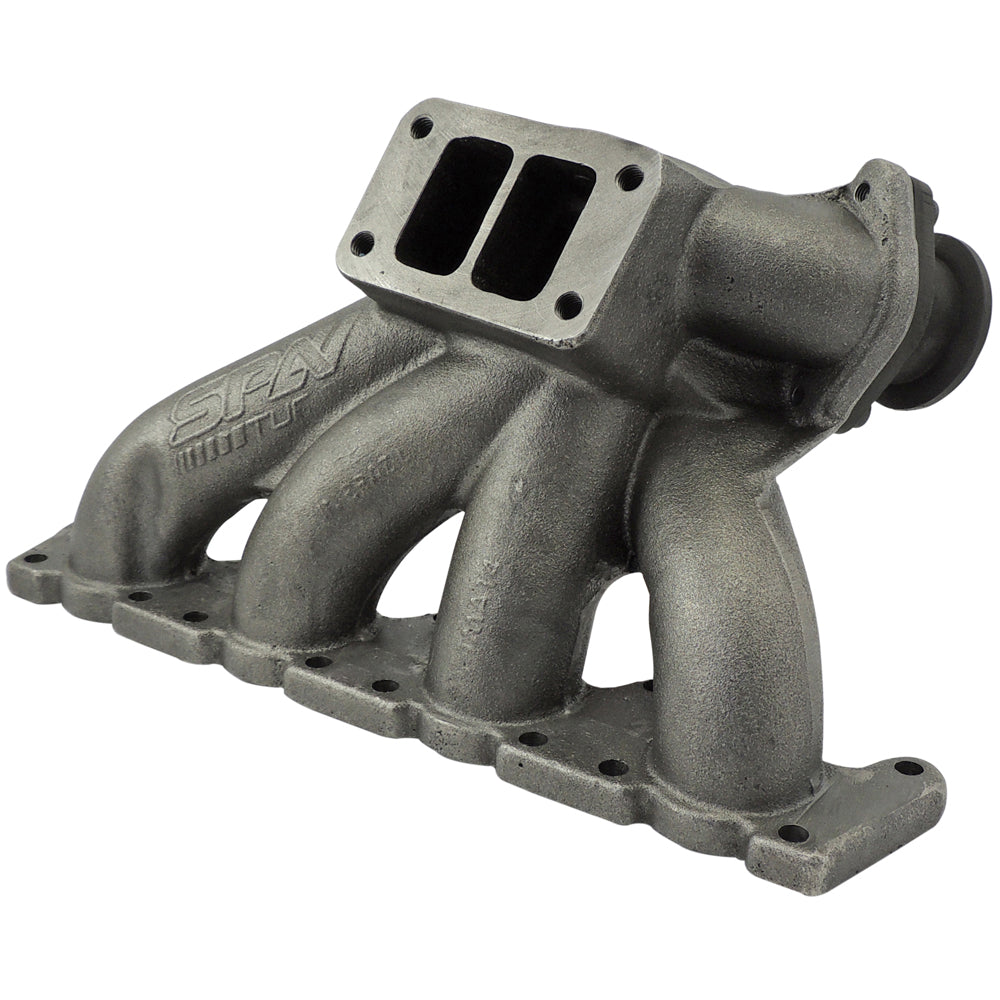

  • The TMA14 manifold is a GGG40 cast manifold, with a T3 turbocharger flange;
  • 44/45mm V-band wastegate Flange.
  • 8 spacer washers are included for easier assembly of the top nuts.
  • The application is VW / Audi 1.8 20V Longitudinal engines. (Passat, A4).
  • Internal diameter ducts: 40mm.

SPA Turbo has one of the widest selections of turbo manifolds in the world, including hard to find applications. From log style to top mount equal runners manifolds, we stock them. We have been providing quality performance components since 1990.

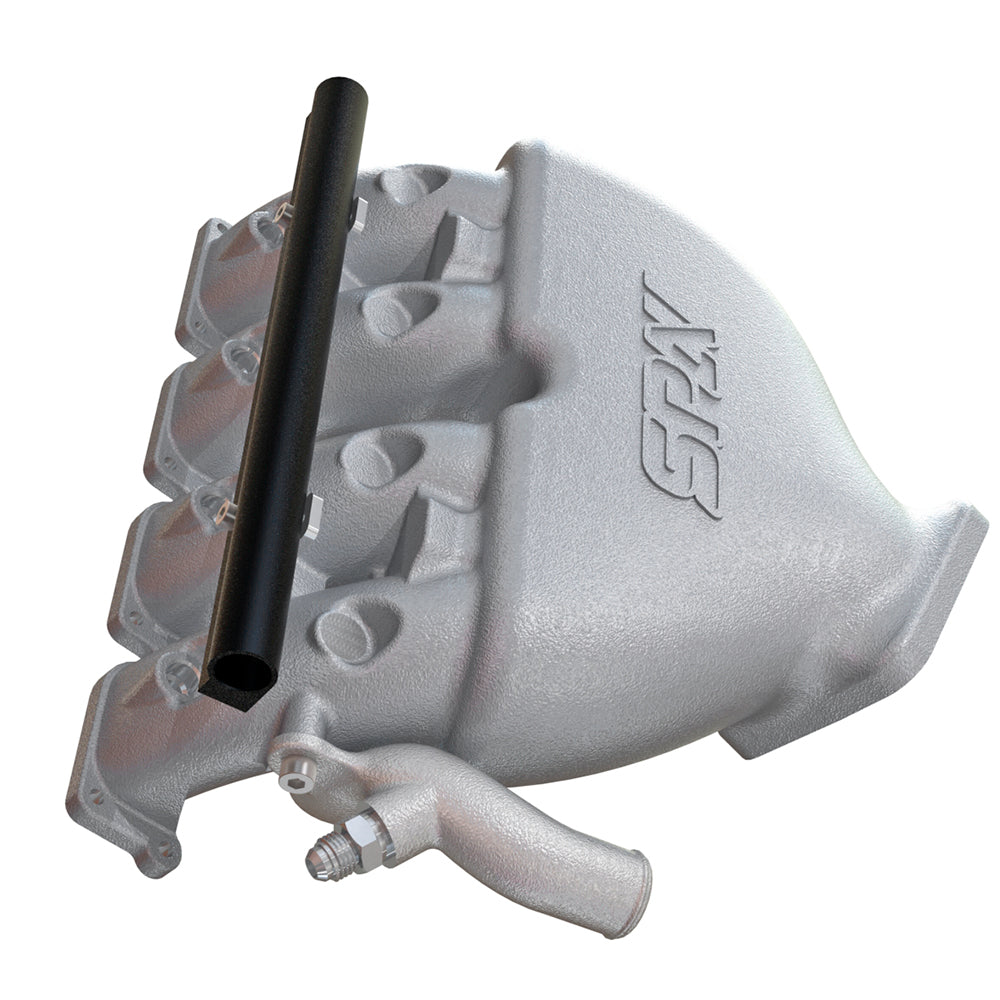

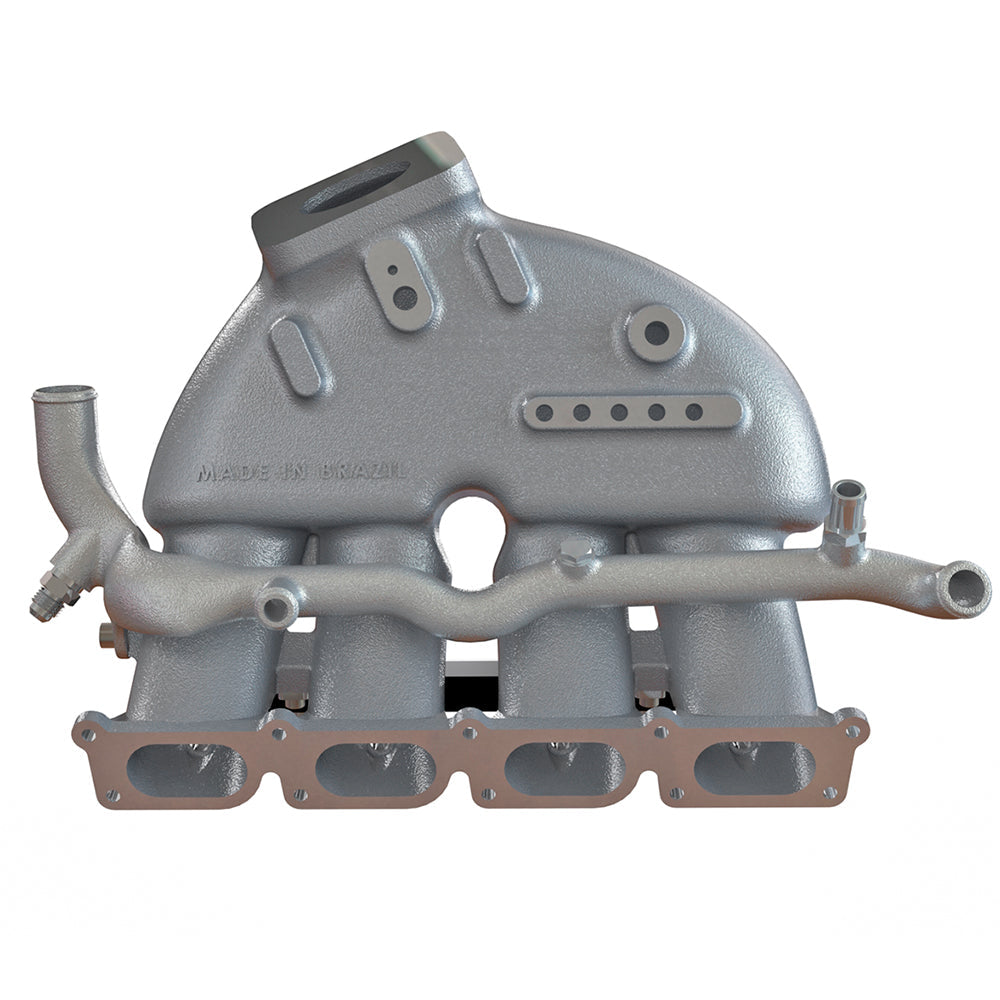

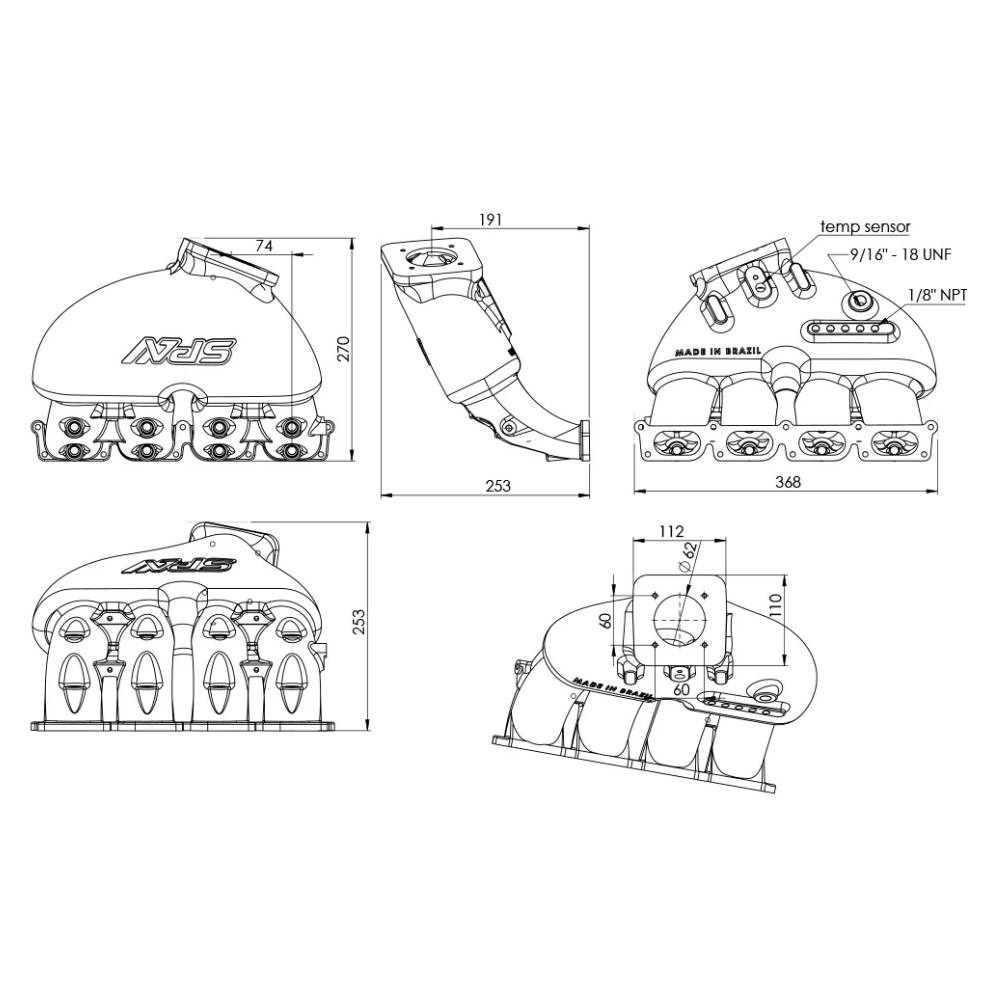

SPA Turbo intake manifold was designed for upgrades builds, having a bigger plenum volume and allowing higher airflow, it is the perfect solution for those who wants high performance and durability, guaranteed by the cast aluminum construction. Available in 4 or 8 injectors with anodized aluminum fuel rails. In addition, you can choose between an OEM throttle body bolt holes pattern or without holes, for those who wants to use a different throttle body (up to 80mm).

Application: VW Passat 1.8 20V Turbo / Audi A4 / A6 1.8 20V Turbo (Large Port head)

Number of injectors: 4

Fuel rail: anodized aluminum, -8AN inlet/outlet

Injectors compatible: Bosch style, 14mm o-ring, compact / standard / long

Throttle body position (TBI): side (not OEM)

Throttle body bolt holes pattern: without throttle bolt holes

Max pressure capacity: 10bar (145psi)

Internal volume: 3,2L

Material: cast aluminum

Ports: stock temperature sensor, 1/8¢â‚¬ NPT (5x), -6AN (1x)

Supplied coolant pipe was designed to replace the stock 06B 121 070H, which must be used with hose 06B 121 132 and coolant flange 06B 121 101.

‚ *Note: water pipe features a -6AN port for turbo water cooling, fitting not included.
