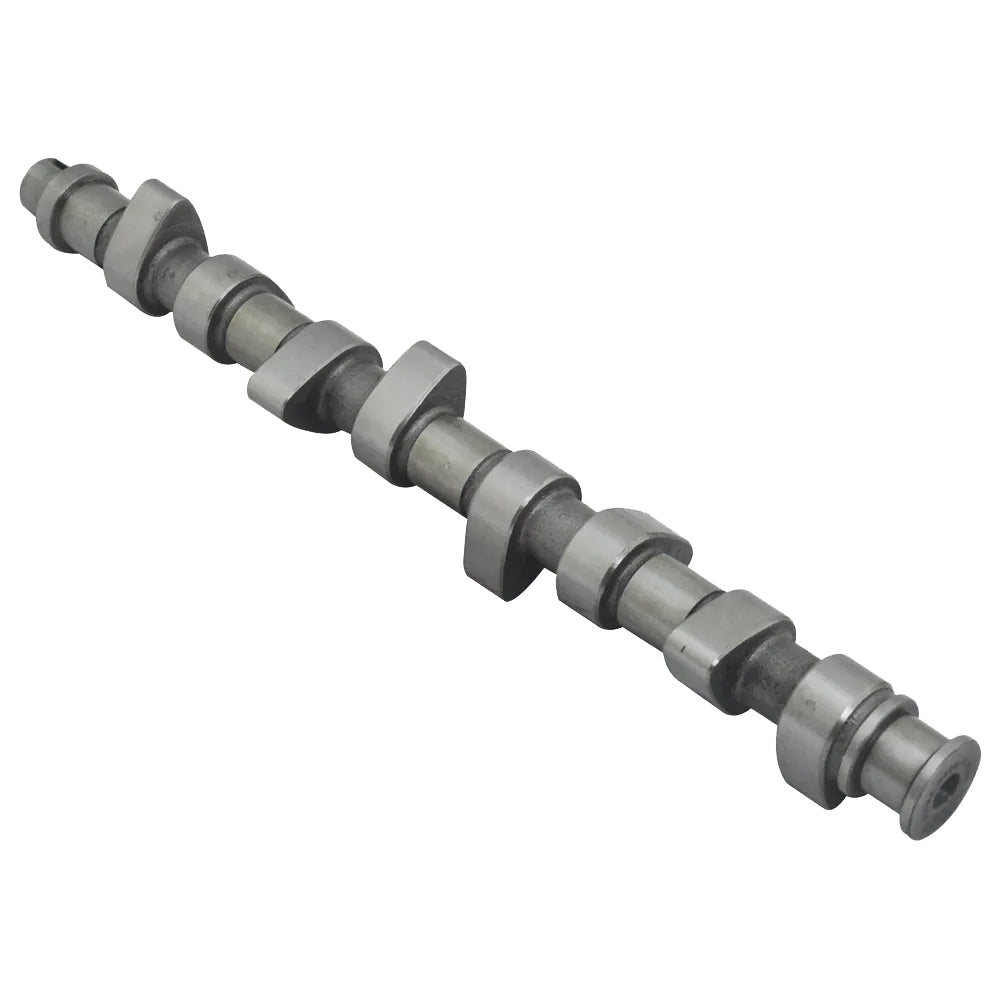

VW 8V 296 / 290 turbo solid tappets performance camshaft

‚

Application: EA 827 engines Capacities 1781-1847-1984cc from 1986
8V Engines with Solid Tappets

VW Golf, Corrado, Audi 80, 100, 5000, Quattro, Jetta, Passat, Scirocco, Sharon, Vento, Gol, Pointer, Saveiro.

Duration intake: 296 degrees
Duration exhaust: 290 degrees
Intake valve lift: 12.80mm
Exhaust valve lift: 12.80mm
Lobe centers: 114 degrees

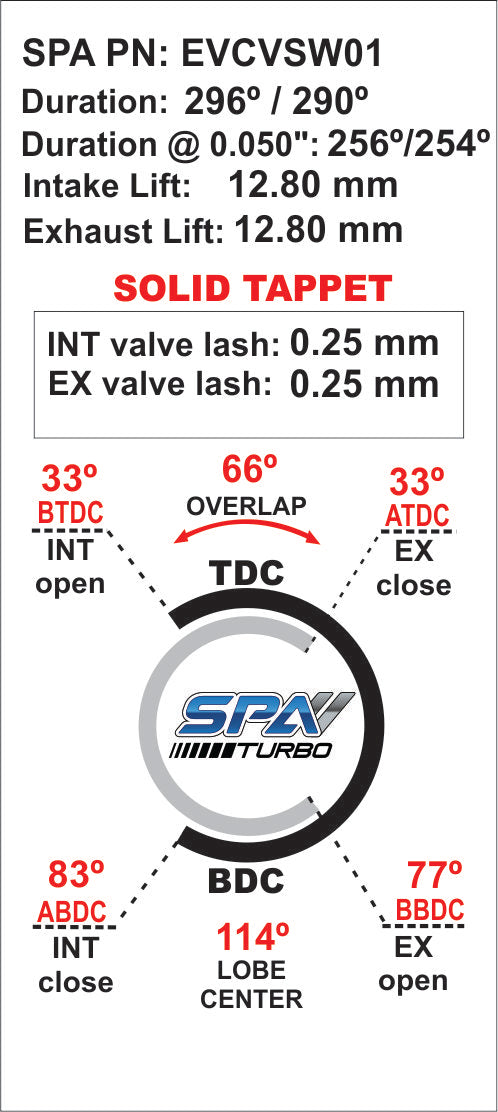

Valve timing
Intake open: 33 degrees
Intake closes: 83 degrees
Exhaust open: 77 degrees
Exhaust close: 33 degrees
Valve clearance: 0.25 / 0.25
Base circle: 36mm
Made of 1045 quenched steel
Billet machined
52-58 HRC

IMPORTANT: this is a performance camshaft, not a OEM replacement, installation may require ECU work, cylinder head work, special lifters and springs, no instructions included, no other parts included.

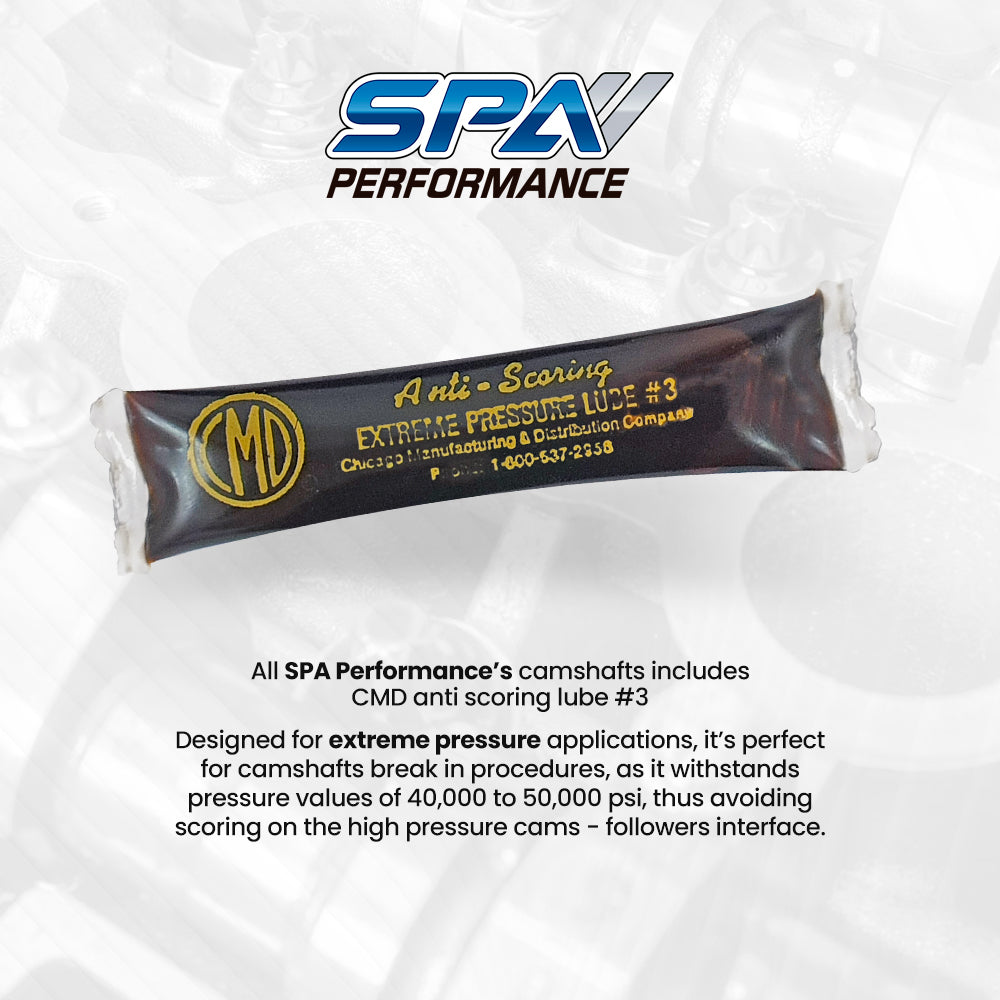

All SPA Performance¢â‚¬s camshafts includes CMD anti scoring lube #3

Designed for extreme pressure applications, it¢â‚¬s perfect for camshafts break in procedures, as it withstands pressure values of 40,000 to 50,000 psi, thus avoiding scoring on the high pressure cams - followers interface.
