Link ECU TB48Link - G5 TB48

Easy to install. Affordable. Reliable.

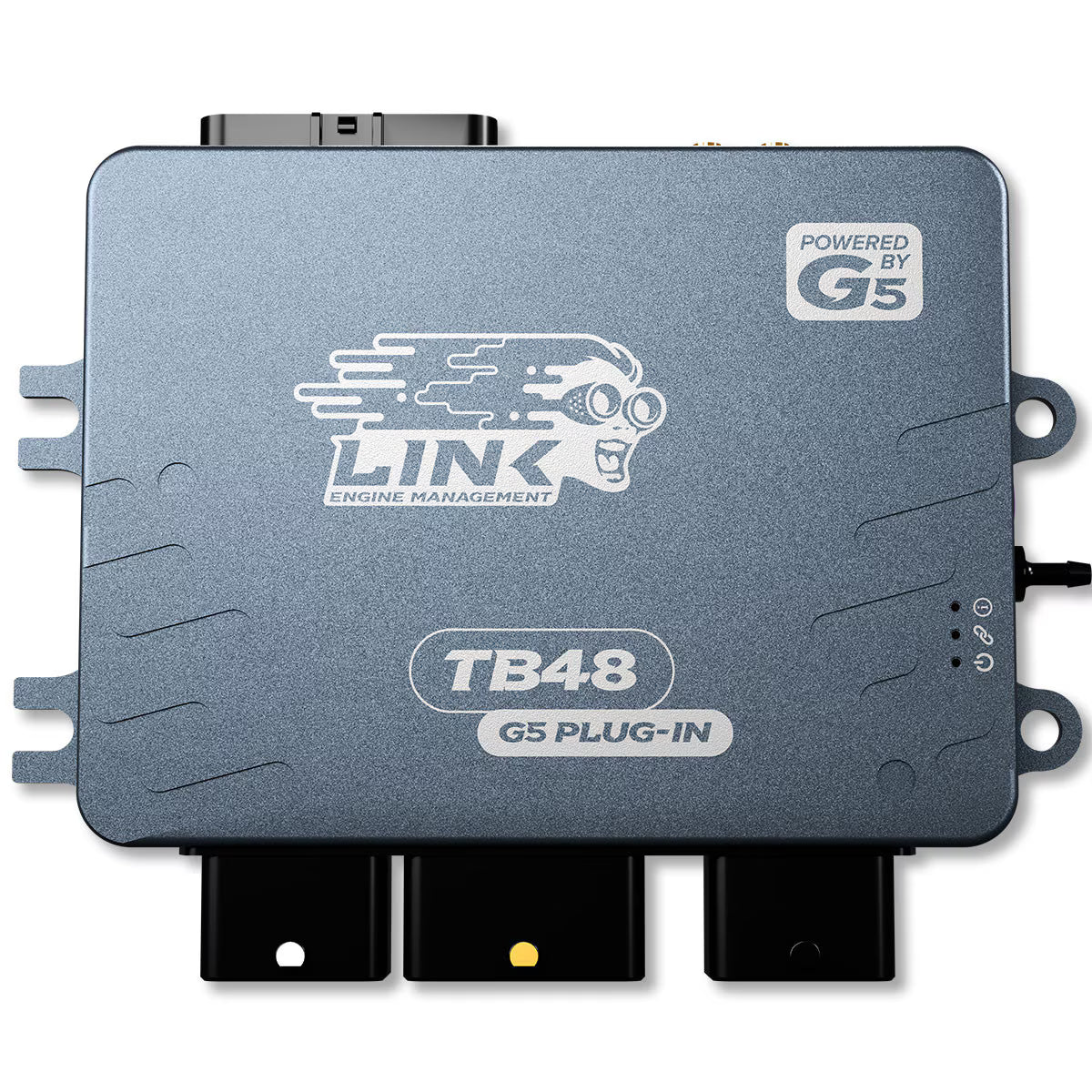

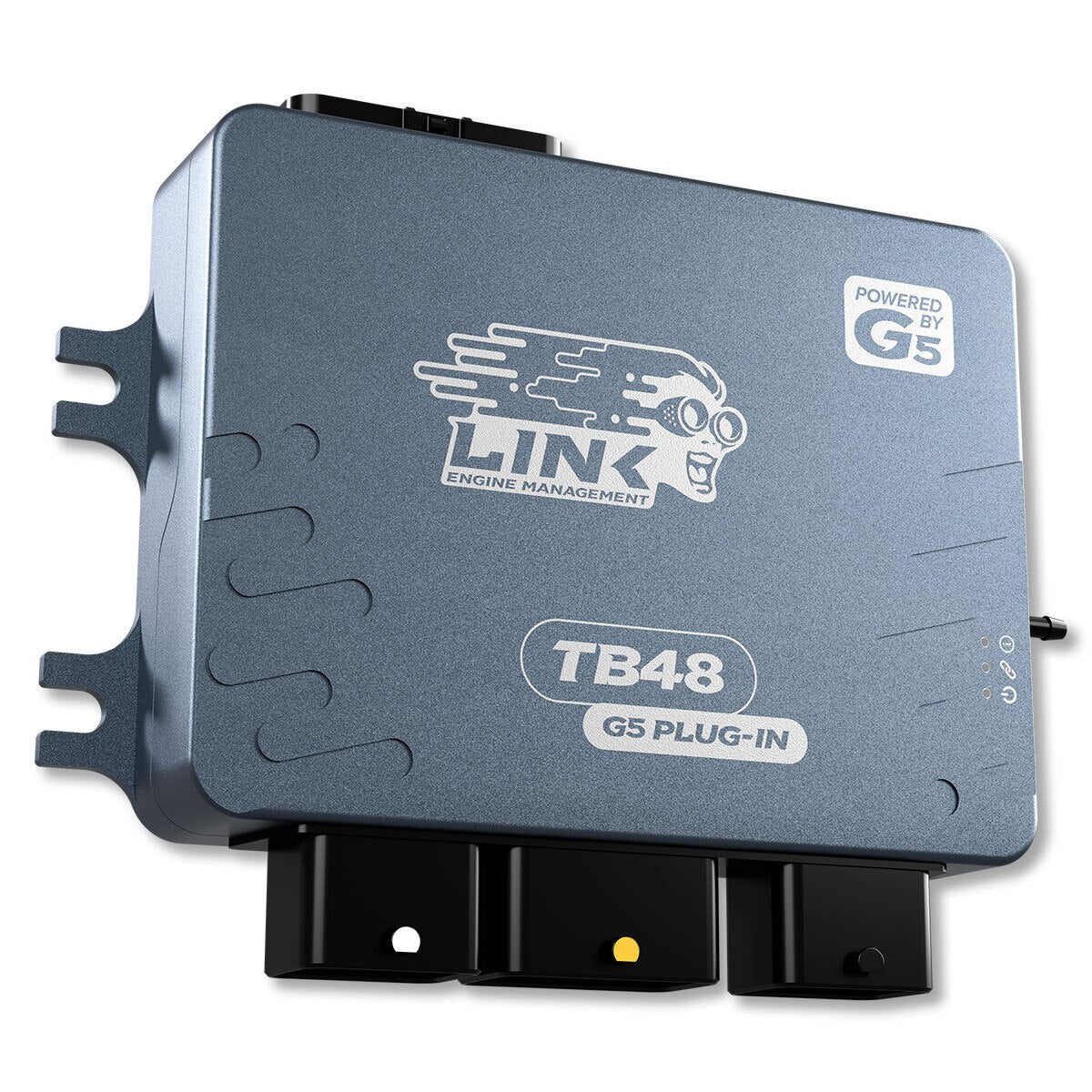

The TB48 G5 Plug-In ECU is a standalone plug and play replacement for the factory ECU and plugs straight into the original wiring loom, no adapter harness needed and comes with a sample map for a tuning head start. The TB48 G5 Plug-In processing unit runs the same powerful microcontroller and firmware as the G5 Voodoo Neo.

Designed for all post-2016 Nissan Patrol Y61 models with the TB48 engine. Support for both Manual and Automatic Transmissions.

Fitment Notice: This ECU is designed for post-2016 Y61 Nissan Patrol models with a 3-plug header, primarily supplied to the Middle East. Before purchasing, contact LinkECU Sales or Technical Support to ensure fitment.

For more technical information please see the Features and Specifications tabs.

In the box:

· TB48 G5 Plug-in ECU

· USB-C Connection Cable

· Wi-Fi Antenna

· 4m GPS Antenna (Magnetic or Adhesive Mount)

· USB-C and SMA Dust Covers

· Link stickers

· Full OEM CAN Bus integration

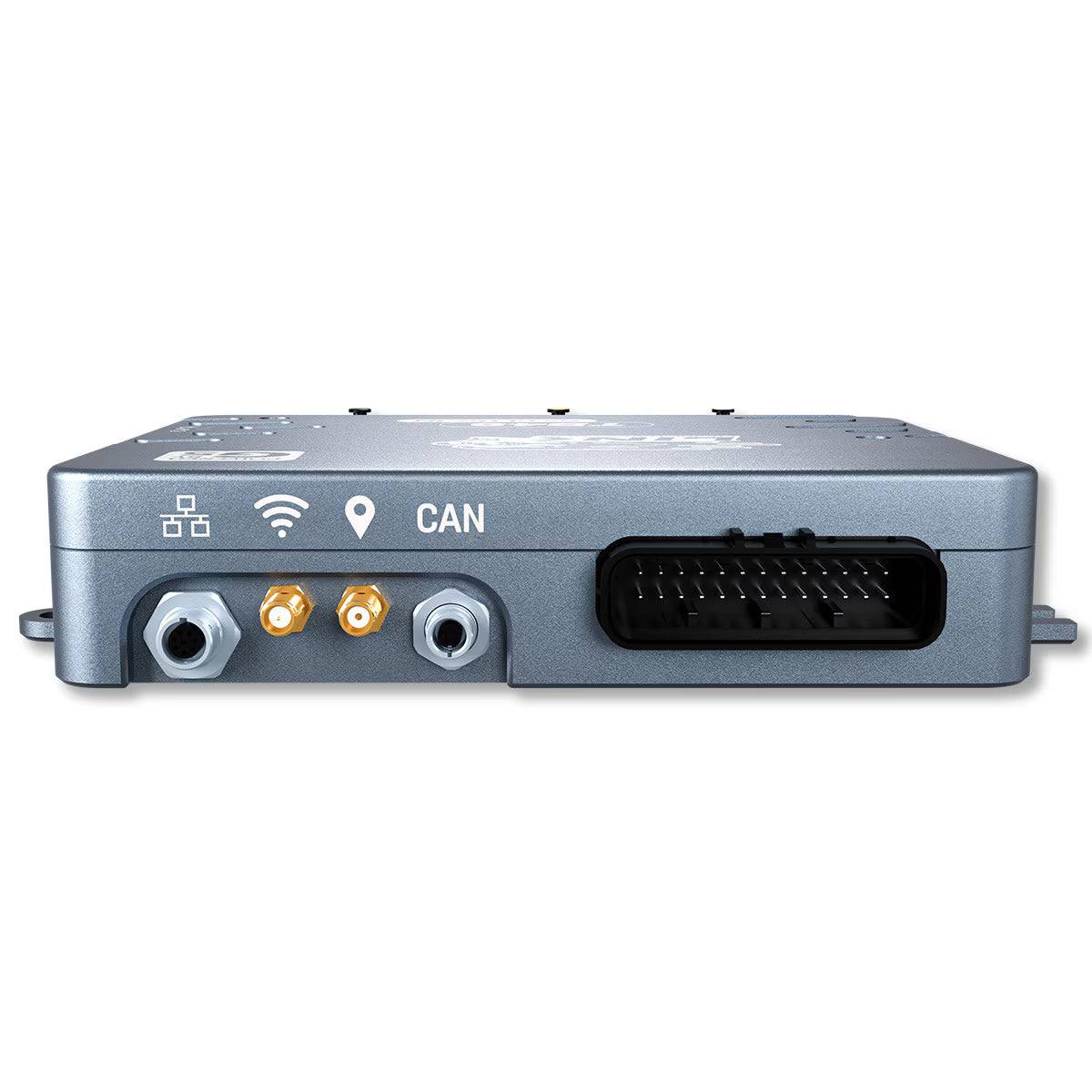

· G5 features such as Wi-Fi, Ethernet and GPS

· Full factory E-throttle (DBW) control

· Full VIAS control

· Onboard Wideband lambda

· Fast log file download speed

· 1GB onboard logging

· Control both Manual and Automatic Transmissions

· Billet CNC Aluminium sealed Enclosure

· Mounts in OEM Location

· Backed by Link’s Limited Lifetime Warranty

All Link Plug-in ECUs come with the below features as standard:

· Plug and Play - A Direct Replacement for the Factory ECU, no adapter looms needed.

· All motorsport features enabled – Anti-lag, Boost Control, Cruise Control, Gear Shift Control, Nitrous Control, Launch Control, Paddle Shift Control, Race Timer and Power Management, Rolling Anti-lag and Traction Control

· Two CAN bus channels

· Advanced Modelled Fuel equation with flex fuel capability, or a more basic “Traditional” equation is available

· Exceptional adaptive knock control or traditional threshold-based knock control.

· Onboard 3 Axis Accelerometer

· Onboard Trigger Oscilloscope

· Live user configurable math channels running in ECU

· Very flexible user configurable CAN bus inputs and outputs. Most 3rd party CAN bus devices supported

· CAN Keypad control

· Flexible engine protection limiters

· PC Link software – Tuning, display and powerful log analysis all in one package.

Click here to download the user manual.
