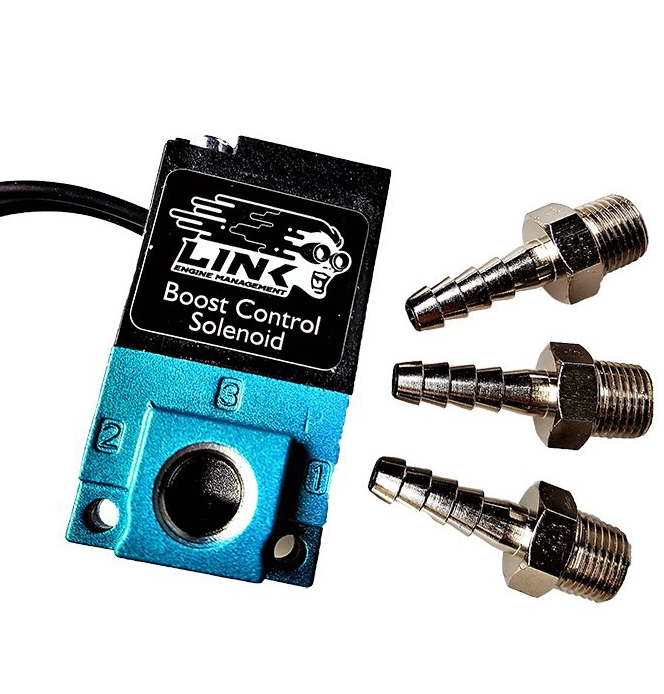

Link ECU Boost Control Solenoid - 3 Port (3BCS)

31 in stock
$176.00 USD
$176.00 USD
  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed

Want FAST delivery?! Order in less than

I18n Error: Missing interpolation value "end_date" for "Ends on {{ end_date }}"

Question about this product?

We're happy to help.

More boost? Of course and this 3 port boost control solenoid will help you do it.

3 port boost control solenoids are the go-to for the majority of boost control applications, they allow for precise control of boost and boost levels can be raised to around 2-3 times the spring pressure of the wastegate.

For higher boost applications consider our 4-Port boost control solenoid.

Features:

  • Compatible with all Link ECU’s
  • Can be used with single or multiple wastegates (Using T junction)
  • Compatible with internal or external wastegates
  • Fast and consistent response times
  • High shifting forces
  • MAC 35 series – Rugged, reliable and long operational life
  • Short stroke, high flow
  • Balanced poppet, immune to variations of pressure



We recommend starting with a PWM Frequency of 20Hz for this Boost control solenoid. A detailed description of setting up boost control can be found in the help file in our PCLink software which is available for free download.

Specifications:
MAC 35 series
120 PSI max
1/8” BSPPL
12 VDC (5.4W)
18” (45cm) coil leads
Includes 3 x 1/8” BSP hose tail fittings for easy connection
