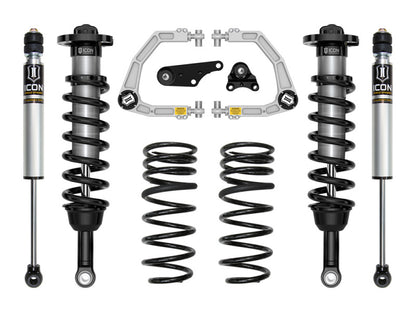

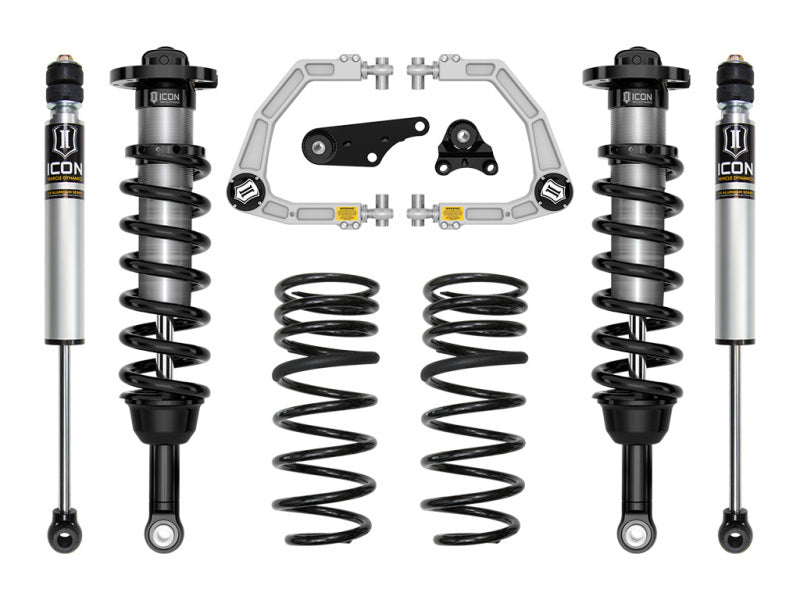

ICON 24 Land Cruiser 250 Series 1.25-3in Lift Stage 2 Suspension System Billet

Low stock! Only 1 left


Regular price $3,347.67 USD
Sale price $3,347.67 USD Regular price $3,938.43 USD

  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed

Want FAST delivery?! Order in less than

I18n Error: Missing interpolation value "end_date" for "Ends on {{ end_date }}"

Question about this product?

We're happy to help.

Up to 15% off

The included ICON billet aluminum upper control arm kit is designed to improve the overall performance of the Toyota Land Cruiser with corrected front-end geometry, increased on-vehicle camber and caster adjustment, and improved suspension component clearance. Additionally, replacing the OE ball joint with the all-new, serviceable, and rebuildable ICON Delta Joint PRO allows for full bump and droop travel of the front suspension while eliminating bind. The dual-rate rear coil design provides a softer ride height spring rate with a firmer overload rate that combine to deliver on-road comfort with excellent bottoming resistance and superior off-road performance. 2” of rear lift height over stock allows a for level stance front to rear. ICON 2.0 Aluminum Series internal reservoir rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2024-2026 Toyota Land Cruiser 250 Series Stage 2 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.

  • Billet aluminum UCAs for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability
  • Front differential drop provides better maximum operating angle for CV joints and maximizes available wheel travel
  • UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
  • Dual rate rear coil springs improve performance and ride quality while providing 2" of rear lift
  • Vehicle specific tuned front and rear shocks for superior shock damping and control
  • Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
  • 2.0 Aluminum Series internal reservoir rear shocks with 5/8" shafts
  • Adjustable coilovers provide 1.25-3" front lift height over stock
  • FK Rod End bearings for extended longevity and minimal deflection
  • Increased wheel travel and improved ride quality over stock
  • 6061 aircraft grade aluminum CNC machined components

This Part Fits:

Year Make Model Submodel
2024-2026 Toyota Land Cruiser 1958
2024-2026 Toyota Land Cruiser Base
2024 Toyota Land Cruiser First Edition
