Audi 80 VW B5 1.9 TDI ADP 1.6L 8V T3 top mount twin scroll street turbo manifold

• Longitudinal mount (not for transverse engines)
• Turbo flange threads: M10x1.5
  Wastegate flange (if applicable) threads: M8x1.25

• WILL FIT 1.9L TDI Diesel engines
• Will Fit B5 1.6L engine (Europe)
• Will Fit vw B1, B2, Audi 80 with vw inline 4 cyl 8v engines
• Audi / VW 8v engines #TMW14

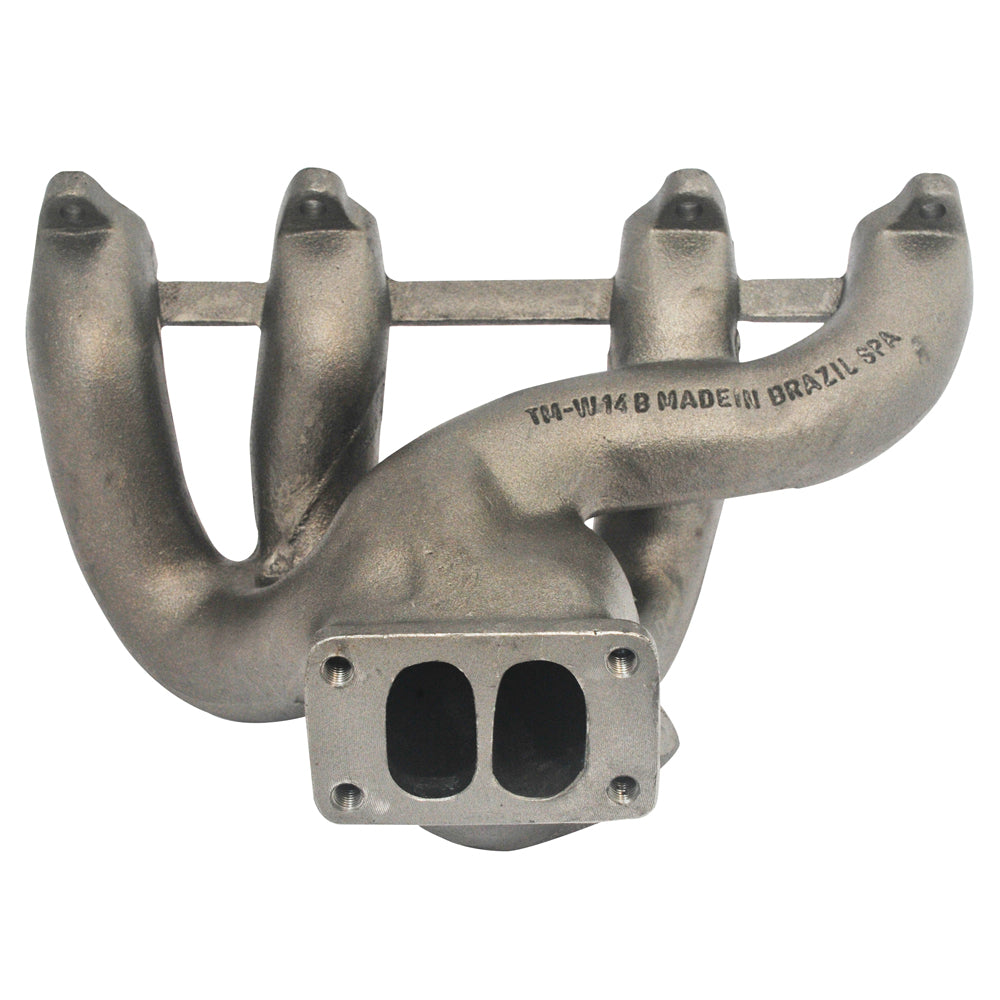

• The TMW14 manifold is a GGG40 cast manifold, (ASTM A536 Class 60-40-18, which is equivalent to GGG40 in standard DIN 1693), with a T3 turbocharger Flange; manifold accepts 2 bolt 38mm wastegates.

• TMW14 model has large runners, TMW14B has the same specs but with for smaller runners.

SPA Turbo has one of the widest selections of turbo manifolds in the world, including hard to find applications. From log style to top mount equal runners manifolds, we stock them. We have been providing quality performance components since 1990.
