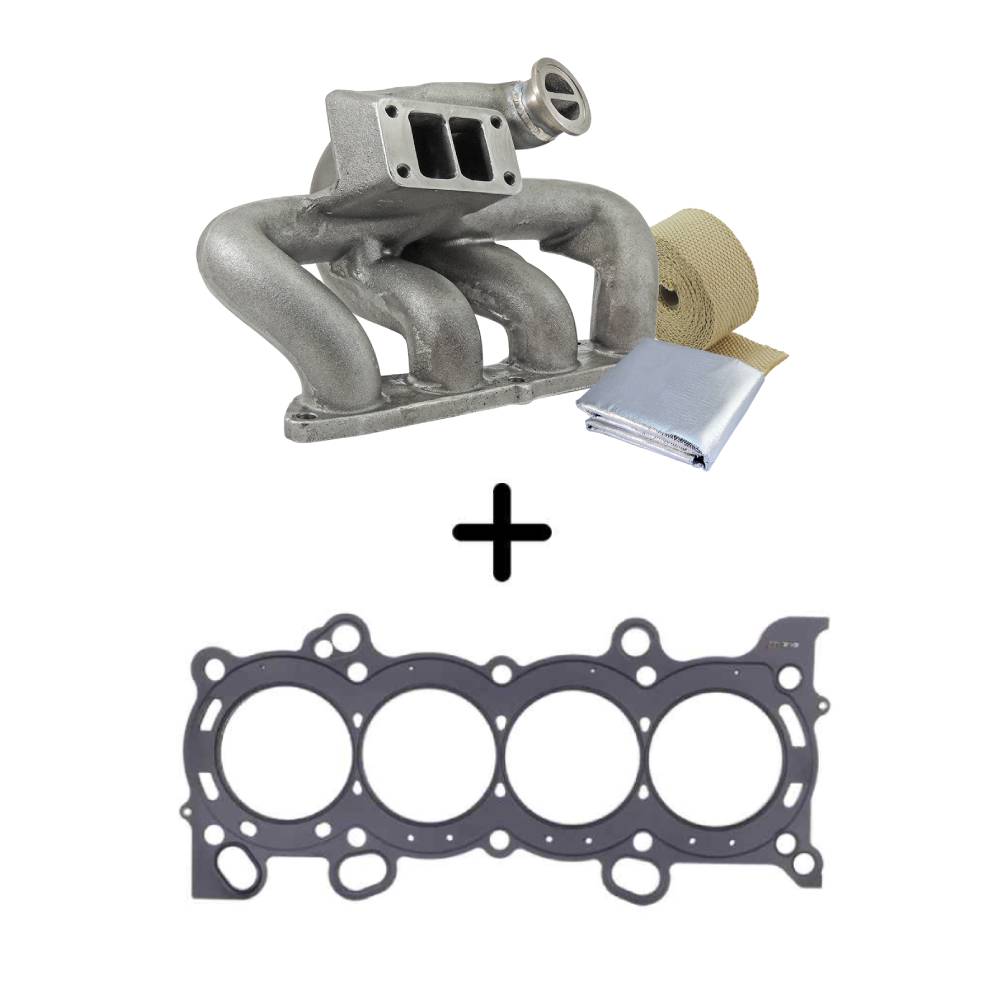

8th gen Honda Civic SI (K20 engine) TWIN SCROLL CAST TURBO MANIFOLD V-BAND WASTEGATE + .030" MLS CYLINDER HEAD GASKET, 87MM BORE

SPA Performance brings another great news for K20 lovers! The new turbo manifold for 8th gen Honda Civic SI, twin scroll and with V-Band 44/45mm wastegate flange, ensuring maximum flow and boost control for your project.

Application: 8th gen Honda Civic SI (K20 engine)

Turbocharger position: Bottom mount

Turbine housing flange: T3

Wastegate flange: V-Band 44/45mm

Runners internal diameter: 43mm

Material: Cast iron

To install the turbo manifold, it is necessary to remove the Vtec solenoid valve heat shield.

Attention: Due to the proximity to the brake line and Vtex solenoid valve, the turbo manifold comes with a 50x50cm aluminum reflective fiberglass for application on the fire wall (using glue) and a 2"x5m black exhaust wrap to wrap the manifold.

HONDA K20A2/K20A3/K20Z1/K24A1 .030" MLS CYLINDER HEAD GASKET, 87MM BORE

Material: MLS
Compressed Thickness: .030
Bore Shape: Round
Bore Size (MM): 87
# of layers: 3
Orientation: None

APPLICATIONS

Acura
RSX (2002-2006)
Honda
Civic (2002-2005)
CR-V (2003-2006)

Turbo flange threads: M10x1.5
Wastegate flange (if applicable) threads: M8x1.25
